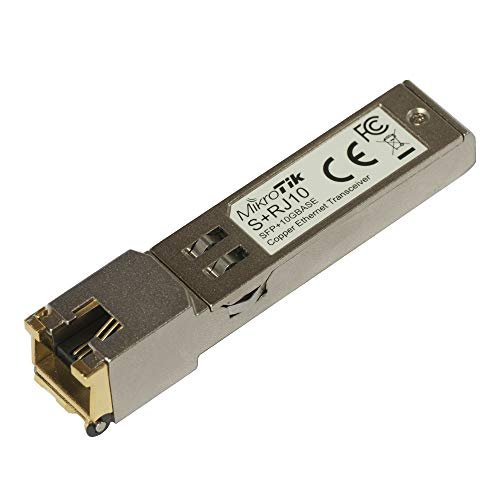

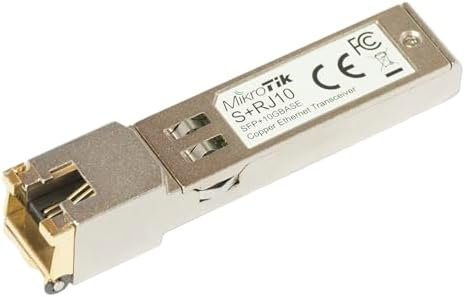

Mikrotik S+RJ10 6-Speed RJ-45 Module for up to 10 Gbps Copper Module

This unique module opens up a whole world of high speed connectivity possibilities, offering up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports. Any MikroTik device with active cooling that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware. S+RJ10 module is supported also on devices with passive cooling, but may require an extra cooling. New revision of S+RJ10 comes with several improvements: – Jumbo frames up to 10218 Bytes are now supported; – Link speed reporting is fixed – actual link speed in the interface menu is listed. Previously 100M/1G/2.5G/5G link speeds were not reported correctly; – DDM monitoring (Supply Voltage, Module temperature) is now supported.
Package Dimensions ‏ : ‎ 4.49 x 3.15 x 0.91 inches; 0.63 ounces
Item model number ‏ : ‎ S+RJ10
Date First Available ‏ : ‎ March 12, 2019
Manufacturer ‏ : ‎ Mikrotik
ASIN ‏ : ‎ B07YJ38TPG
Best Sellers Rank: #308 in Computer Networking Transceivers
Customer Reviews: 4.2 4.2 out of 5 stars 25 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
This unique module opens up a whole world of high speed connectivity possibilities, offering up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports
Any MikroTik device with active cooling that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware
S+RJ10 module is supported also on devices with passive cooling, but may require an extra cooling

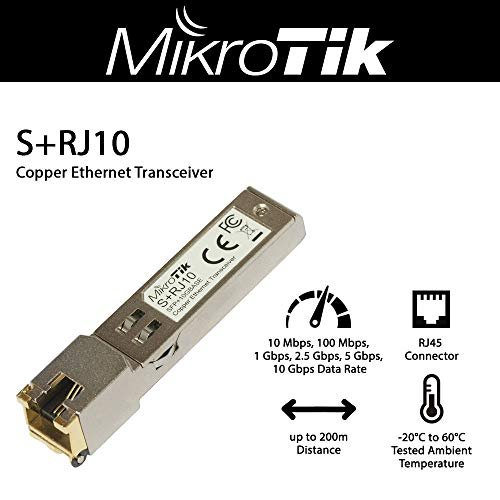

Connector: RJ45; Data Rate: 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps; Distance: up to 200m
Size of RAM: 0 KB; Storage size: 256 KB; Storage type: FLASH; Tested ambient temperature: -20 celsius to 60 celsius
